Decoding Scientific Experimental Images: The SPUR Benchmark for Perception, Understanding, and Reasoning

Junpeng Ding1 Zichen Tang1 Haihong E1 Mengyuan Ji1 Yang Liu1 Haolin Tian1 Haiyang Sun1 Pengqi Sun1 Yang Xu1 Yichen Liu1 Haocheng Gao1 Zijie Xi1 Ruomeng Jiang1 Peizhi Zhao1 Rongjin Li1 Yuanze Li1 Jiacheng Liu1 Zhongjun Yang1 Jintong Chen1 Siying Lin1

1Beijing University of Posts and Telecommunications

* Corresponding author

arXiv GitHub HuggingFace ACL 2026 Main Conference

Abstract

We introduce SPUR, a comprehensive benchmark for scientific experimental image perception, understanding, and reasoning, comprising 4,264 question-answering (QA) pairs derived from 1,084 expert-curated images. SPUR features three key innovations: (1) Panel-Level Fine-Grained Perception: evaluating the visual perception of multimodal large language models (MLLMs) across three dimensions (numerical, morphological, and information localization) on six fine-grained panel types; (2) Cross-Panel Relation Understanding: utilizing complex images with an average of 14.3 panels per sample to evaluate MLLMs' ability to decipher intricate cross-panel relations; (3) Expert-Level Reasoning: assessment of qualitative and quantitative reasoning across five experimental paradigms to determine if models can infer conclusions from evidence as human experts do. Comprehensive evaluation of 20 MLLMs and four multimodal Chain-of-Thought (MCoT) methods reveals that current models fall significantly short of the expert-level requirements for scientific image interpretation, underscoring a critical bottleneck in AI for Science (AI4S) research.

Key Figures

spur benchmark statistics and composition

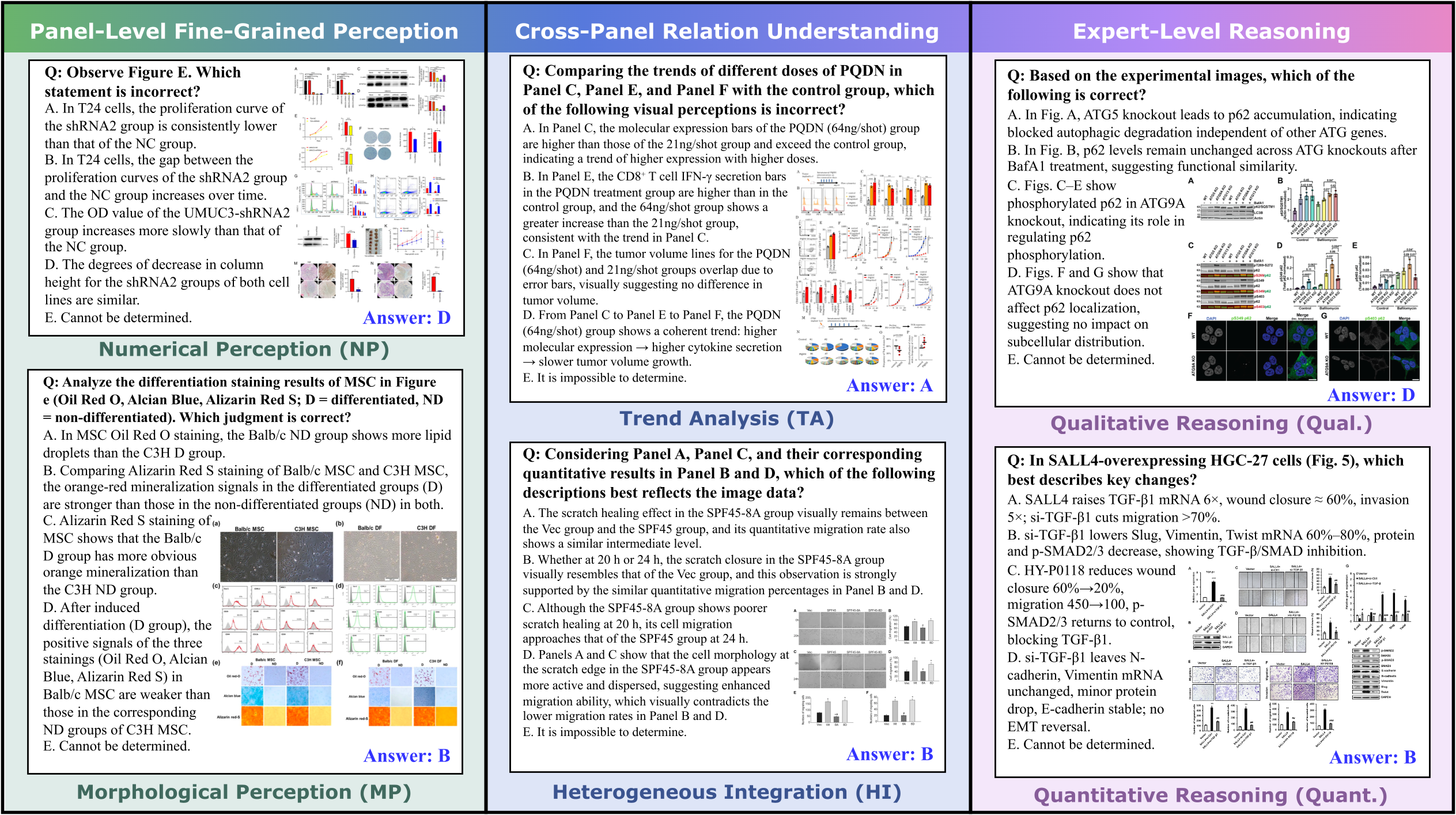

Figure 1. Representative QA pairs across SPUR’s three cognitive stages.
SPUR benchmark overview

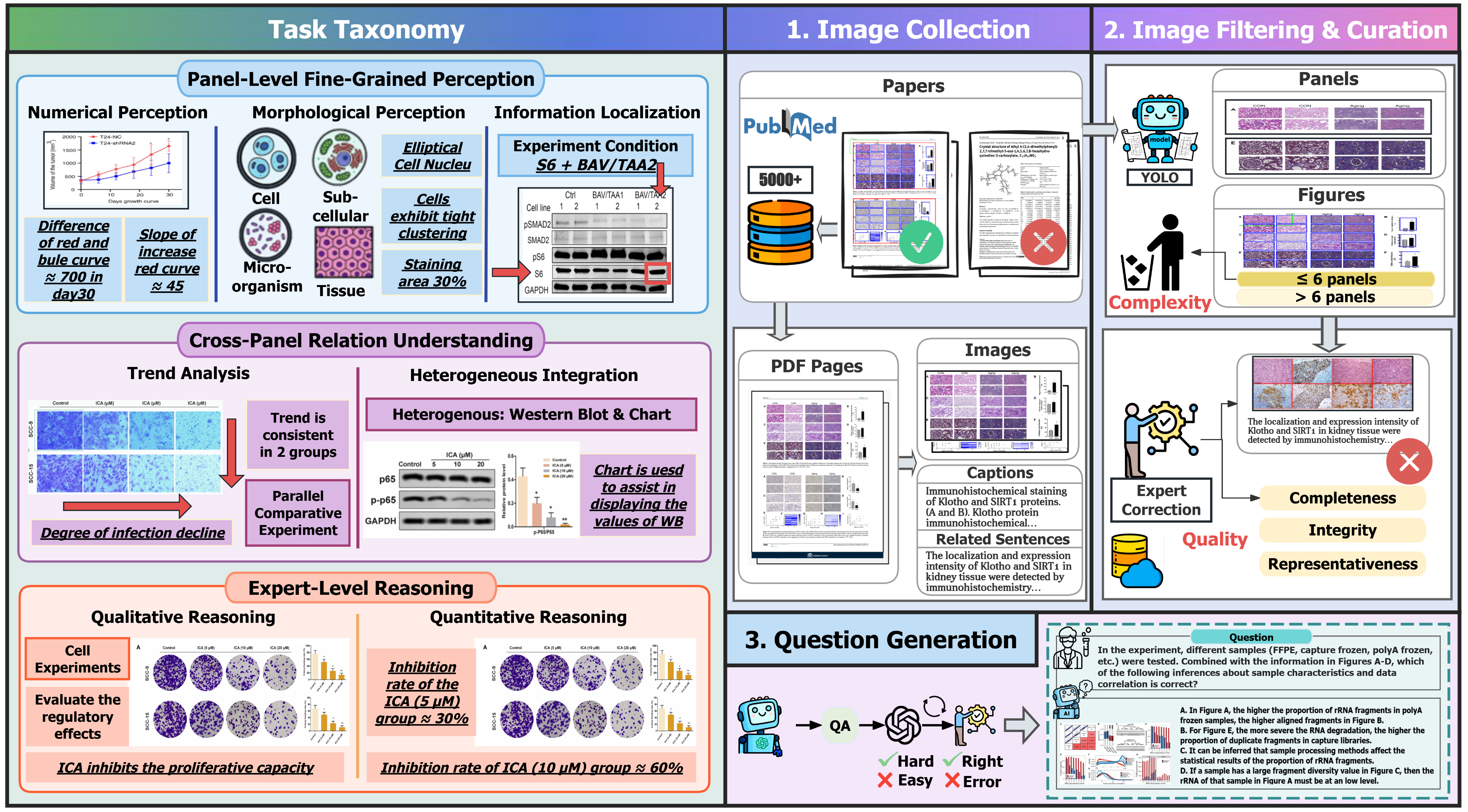

Figure 2. Overview of SPUR.
